The Optimax SC680 is a manually operated shrink wrapping machine, combining the sealing bar unit with a fully enclosed chamber in which hot air is circulated to seal the film and evenly shrink it around a product. Suitable for use with single products or for collation of several products in one pack.

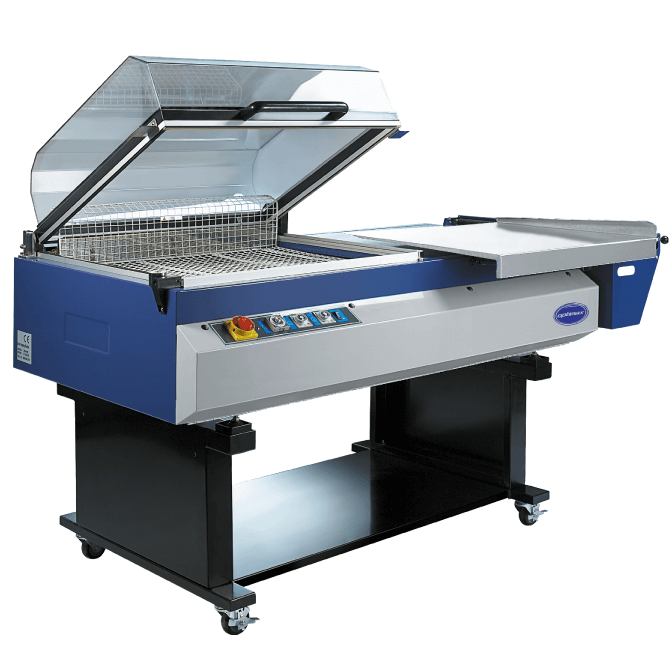

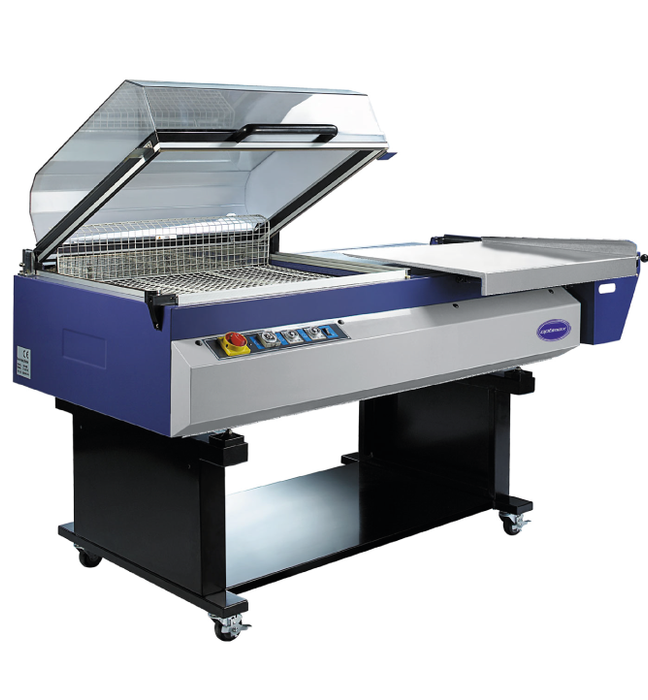

Optimax® SC680 Heat Shrink Chamber

£4,445.23 - £4,445.23
£4,445.23
£4,445.23 - £4,445.23
£4,445.23

The Optimax SC680 is a manually operated shrink wrapping machine, combining the sealing bar unit with a fully enclosed chamber in which hot air is circulated to seal the film and evenly shrink it around a product. Suitable for use with single products or for collation of several products in one pack.

Suitable for use with single products or for collation of several products in one pack.

Features include:

  • Powerful, high-capacity model
  • Seal and shrink in one operation
  • Very low energy consumption
  • Advanced electronic controls
  • 415V 3 Phase 16A supply required
Power supply: 380/400/415V, 50/60Hz, 16A
Max. power consumption: 5.3kW
Effective power consumption: 2.3-3.4kW
Sealing dimensions: 620mm x 800mm (D x L)
Max. height of packaging: 250mm
Machine dimensions: 1575 x 1020 x 645m (L x W x H)
Film Specifications:
Thickness: 60 gauge
Max. roll width 800mm
Max. outer roll diameter: 250mm
Inside core diameter: 75mm
